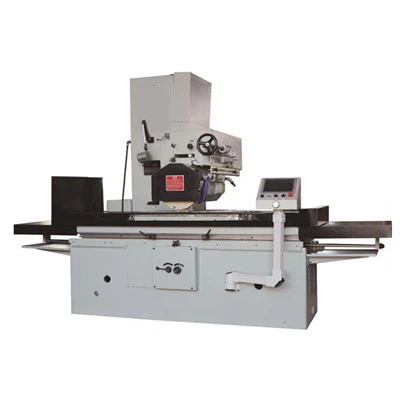

Precision Hydraulic Surface Grinding Machine
Precision Hydraulic Surface Grinding Machine is used for grinding flat and formed metal surfaces with stable table motion and controlled finish. It is used in mold making, metal workshops, and mechanical parts processing for surface finishing and correction.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Introduction
Precision Hydraulic Surface Grinding Machine is used for grinding flat and formed metal surfaces with stable table motion and controlled finish. It is used in mold making, metal workshops, and mechanical parts processing for surface finishing and correction.
Technical Parameters
|
Semi-Auto |
|
|
Vertical |
Rapid movement and manual |
|
Cross |
Auto intermittent |
|
Longitudinal |
Hydraulic |
|
Model |
MX-4080AH/AHR |
|
|
Table size (L*W) |
806x406mm |
|
|
Maximum longitudinal travel |
830mm |
|
|
Cross tranal |
420mm |
|
|
Distance from table surface to spindle center |
480mm |
|
|
Magnetic chuck size |
800x400mm |
|
|
Speed of table longitudinal movement |
7~16m/min |
|
|
Table transverse movement |
Auto feed |
0.1~8mm |
|
Rapid speed |
990m/min |
|
|
Feed of handwheel |
0.02mm/div. |
|
|
Wheelhead vertical movement |
Auto feed |
/ |
|
Rapid speed |
990mm/min |
|
|
Feed of handwheel |
0.01mm/div. |
|
|
Grinding wheel |
Speed |
50HZ 1440rpm; 60HZ 1750rpm |
|
Size(OD*W*ID) |
φ300x30xφ75mm |
|
|
Spindle motor |
4kw |
|
|
Hydraulic motor |
2.2kw |
|
|
Cooling motor |
0.09kw |
|
|
Elevating motor (AHR) |
0.25kw (AHR) |
|
|
Cross feed motor |
0.04kw |
|
|
Max. loading capacity of table(include magnetic chuck) |
200kg |
|
|
Total rated power |
7kw |
|
|
Height of machine |
1840mm |
|
|
Cross weight |
2000kg |
|
|
Packing size (L*W*H) |
2500x2000x2220mm |
|
Key Features
Rigid Cast Structure
Cast iron machine bed designed to maintain structural alignment under continuous grinding load.
Hydraulic Table Drive
Hydraulic transmission system with table speed range of 7–16 m/min for stable reciprocating motion.
Grinding Valve System
Dedicated mechanical hydraulic valve with direction control and throttling regulation for stable reversing motion.
Magnetic Workholding Compatibility
800×400 mm magnetic chuck interface available for permanent or electromagnetic chuck options.
Customization Services
Machine Configuration：Table travel, grinding height, and layout can be adjusted based on workpiece size.
Hydraulic System：Hydraulic pressure, flow, and table speed can be tuned for different conditions.
Guideway Options：Scraped finish level and sliding material can be selected for accuracy needs.
Workholding System：Magnetic chuck type and size can be customized as required.
Electrical Standards：Voltage, frequency, and control layout can be adapted for different markets.
