Wuxi Mingxu Machinery Equipment Co., Ltd.

Wuxi Mingxu Machinery Equipment Co., Ltd. was established in 1997 and has over 20 years of experience in manufacturing grinding machines. We are professional centerless grinding machine manufacturers, suppliers and factory in China, specializing in precision centerless grinding machines and surface grinding machines.

learn more

  • Experienced Manufacturer

    With more than 20 years of manufacturing experience, we have strong technical knowledge in grinding machine production.

  • Professional Factory

    Our factory covers over 20,000㎡, equipped with advanced machining equipment and modern production workshops.

  • OEM & Customization

    We support OEM and customized grinding machines according to customer requirements.

  • Strict Quality Control

    All machines are produced under ISO9001 quality management system with strict quality inspection.

Highpro1
Highpro2
Highpro3

  • 1

    Precision Centerless Grinder

  • 2

    Wide-Wheel Centerless Grinder

  • 3

    CNC Centerless Grinder

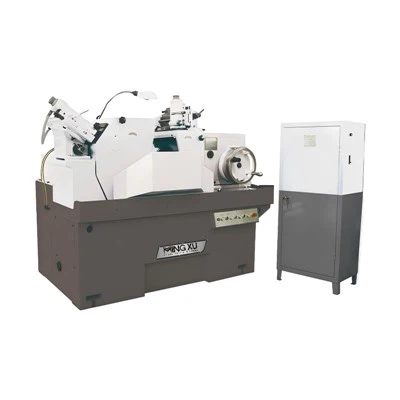

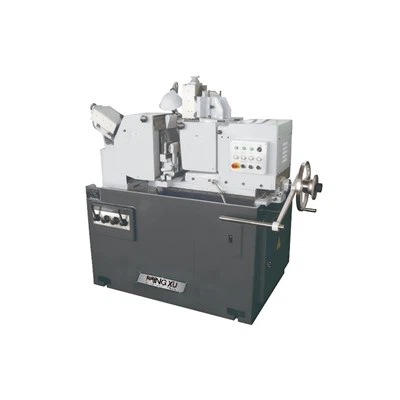

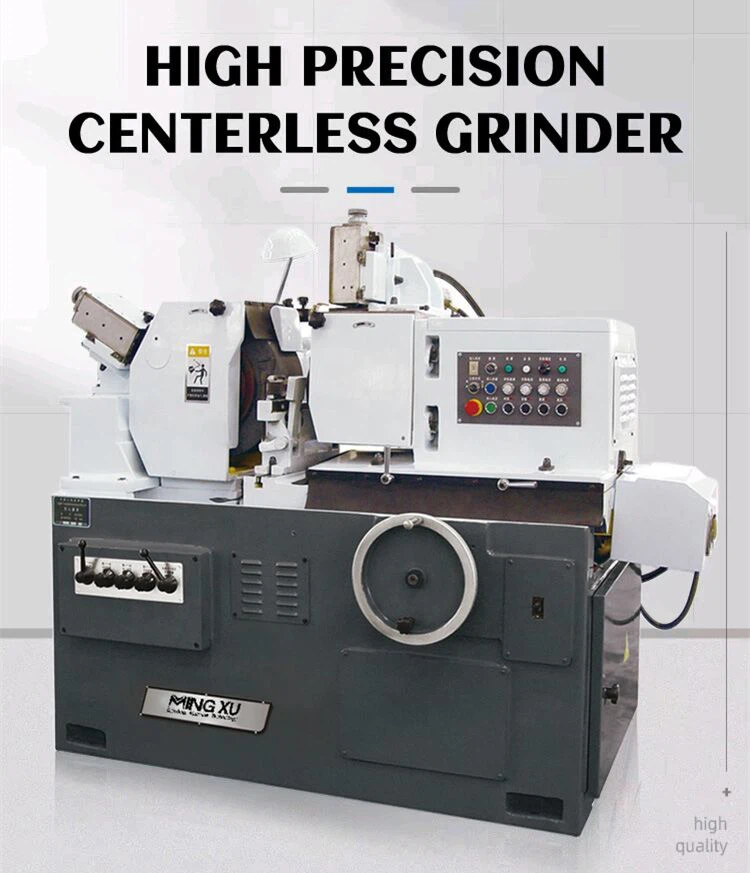

High Precision Centerless Grinder

The M1050A precision centerless grinding machine is mainly used for through-grinding of the outer surfaces of cylindrical and annular parts; semi-automatic or automatic cut-in grinding is performed for cones with a taper less than 1:20 and various molded rotating parts.

  • Model: MX-M1050A
  • Max. Grinding Length: 120mm
  • Grinding Wheel Specification: P400x150x203mm
  • Grinding Wheel Speed: 1668r/min
  • Plunge-feed Grinding Diameter: 5-50mm
  • Through-feed Grinding Diameter: 5-50mm
  • Regulating Wheel Specification: PSA300x150x127mm
  • Regulating Wheel Speed: 10-200r/min

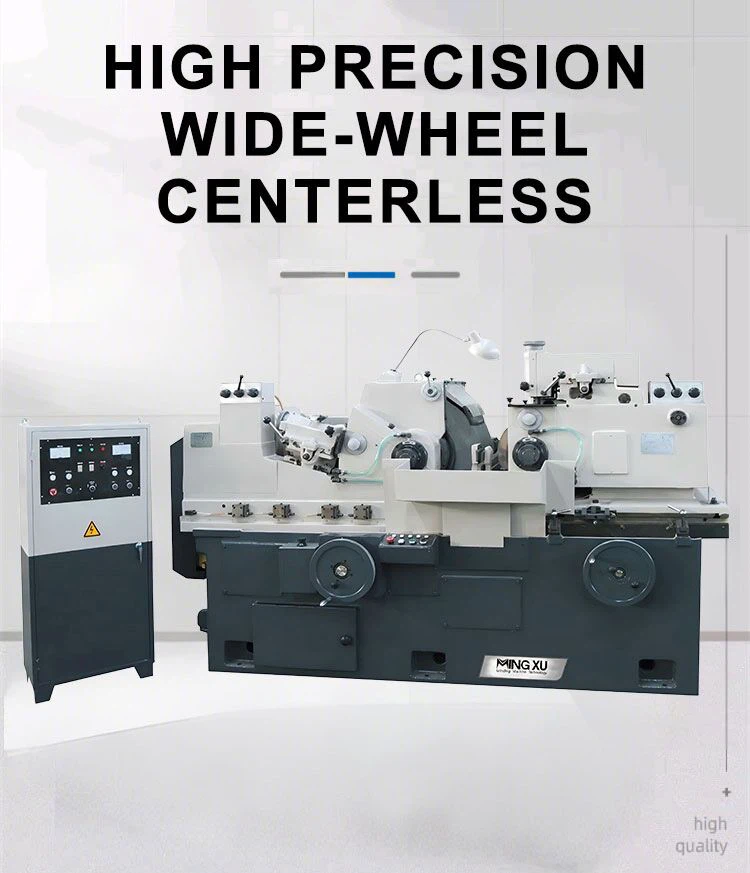

High Precision Wide-Wheel Centerless Grinder

MX-M10200 series centerless grinding machine is a high precision wide-wheel centerless grinder, mainly used to grind the outer ring surfaces of various bearings with a diameter of φ10~200mm and the outer surfaces of various other similar parts with equal diameters.

  • Model: MX-M10200
  • Max. Grinding Length: 390mm
  • Grinding Wheel Specification: P600x400x305mm
  • Grinding Wheel Speed: 1110r/min
  • Plunge-feed Grinding Diameter: 10-200mm
  • Through-feed Grinding Diameter: 10-200mm
  • Regulating Wheel Specification: P350x400x203mm
  • Regulating Wheel Speed (stepless): 10-200r/min

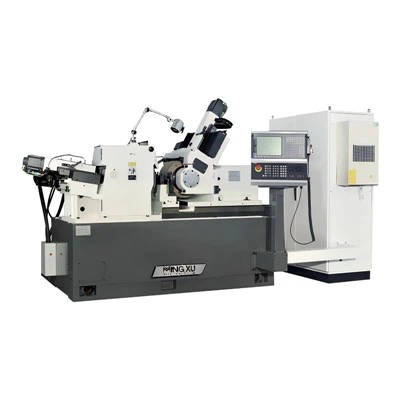

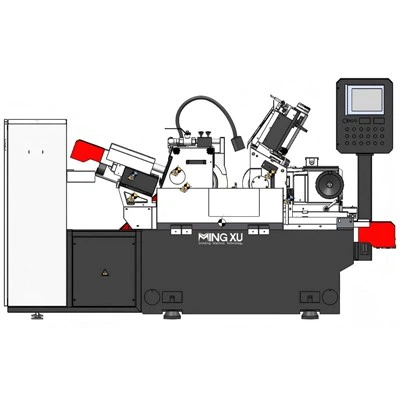

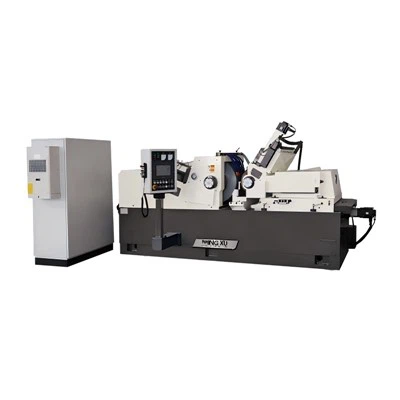

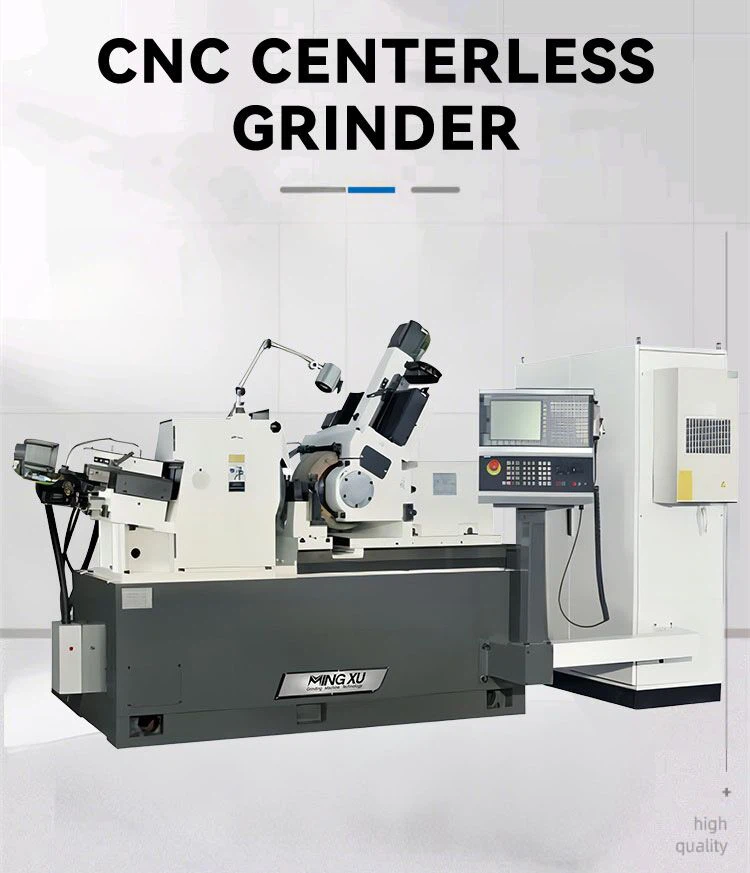

CNC Centerless Grinding Equipment

MX-S200 high-precision CNC centerless grinding equipment is equipped with advanced CNC control technology, which enables it to perform complex operations with ease. It features a highly accurate and stable grinding system and can complete centerless grinding machine processing and obtain consistent results even on the most demanding applications.

  • Model: MX-S200
  • Max. Grinding Length: 190mm
  • Grinding Wheel Specification: P500x200x305mm
  • Grinding Wheel Speed: 1338r/min
  • Plunge-feed Grinding Diameter: 2-60mm
  • Through-feed Grinding Diameter: 2-60mm
  • Regulating Wheel Specification: P350x200x203mm
  • Regulating Wheel Speed (Stepless): 10-200r/min
